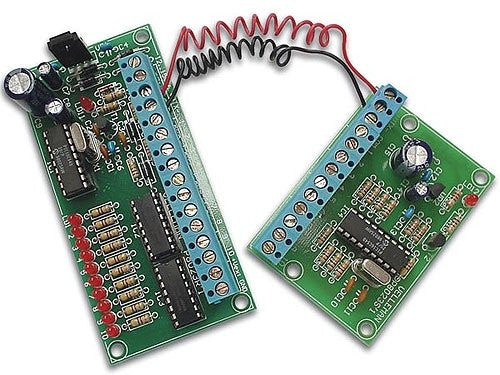

10-Channel; 2-Wire Remote Control

This kit allows you to control up to 10 devices using only 2 wires at a long distance. Microprocessor controlled. Inputs can be push-buttons, switches or open collector outputs from another device.

The receiver section provides 10 open collector outputs that allow you to control relays directly. Terminal block connectors for all input and output connections are included. All outputs are provided with LED indication.

10 open collector outputs: 50V / 100mA, tested to a distance of up to 50m (55 yards) between control- and receiver section, operating voltage: single 12-15V AC or DC, 300mA

dimensions: control pcb: 2.7" x 2.0" x 0.6", receiver pcb: 4.0" x 2.0" x 1.0"

Kit - Basic Soldering Required
