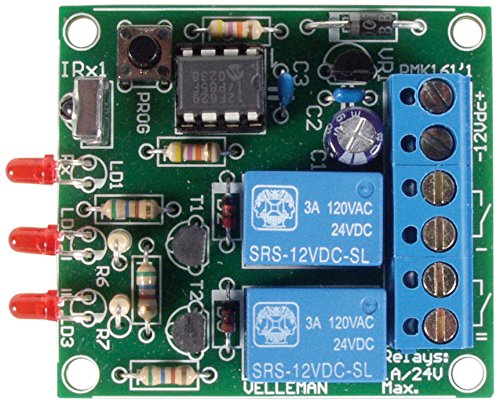

2-CHANNEL IR REMOTE RECEIVER

Program Two Functions!          Use the sleek K8049 as the main remote for your IR control.  Perhaps add an automatic    light dimmer with the K6712 above.  But with 15 channels available on your remote youve    got lots of control room to spare!  This tiny little receiver gives you two separate    channel functions, providing relay closures for each!  Each control function can be set    for either toggle or pulse mode to fit your specific application.  Plus, all settings are    stored forever in the built-in EEPROM!  Channel and acknowledgement of reception are    indicated on the attached LEDs.  Relay outputs are rated at 24VAC/VDC at 1A.  Runs on    12VDC at 0.75mA and measures a small 1.7 x 1.9 x .6.  From Velleman.     ;
