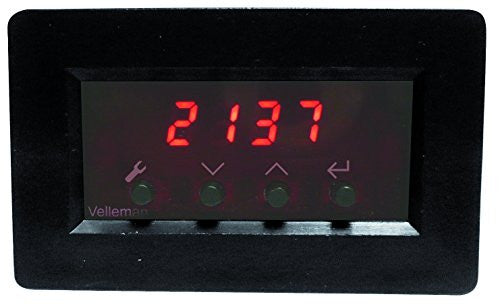

Panel Counter Module

Additional Features:

red LED read-out
debounce function for stable operation (with low counting frequencies)
adjustable 'preset': 0000 to 9999
auto reset when preset value is reached when counting up
example if preset= 5: 0000 > 0001 > 0002 > 0003 > 0004 > 0005 > 0000 > 0001 > 0002 > 0003 > 0004 > 0005 > 0000 > 0001 .
auto 'load preset' mode when counting down
example if preset = 6: 0006 > 0005 > 0004 > 0003 > 0002 > 0001 > 0000 > 0006 > 0005 > 0004 > 0003 > 0002 > 0001 > 0000 > 0006 .
comes with board-to-wire connectors (20cm wire)

Specifications:

counter input: dry contact, connecting to ground
'equal'- output: max. 100mA (@ max. 30V) 'open-collector' output
max. counting speed: 400 / sec. (10 / sec. with debounce delay)
max. count: 4 digits (0000 to 9999)
output pulse length: 100 to 900ms or 'as long as equal'
power supply: 9 to 12VDC (unregulated)
power consumption: 2 41/64" x 1 19/32"
dimensions:
panel module: 2.63 x 1.6"
cut-out: 2.12 x 1.45"
mounting depth: 1.65"
