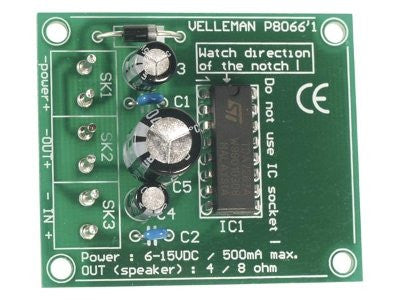

3W Mono Amplifier, 1.6 x 1.9"

Features:
compact size
low part count
no additional heatsink required
single supply
wide supply range
excellent protection

Specifications:
output power: 3Wrms (4-8 ohm, 15VDC, 10% THD)
frequency range: 50Hz - 20kHz (1W/8ohm, -3dB)
gain: 32dB (40x)
thermal protection
short circuit protection
power supply: 6 ~ 15VDC
current consumption: 500mA max.
dimensions: 1.6 x 1.9"
