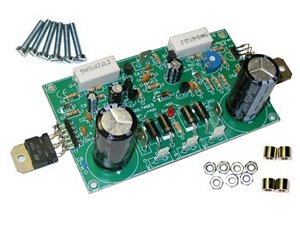

• Discrete Power Amplifier 200 W, 4.2 x 2.4"

    Velleman

  • $32.40

  • Description

    Specifications:

     200W music power @ 4 ohm load
     100Wrms power @ 4 ohm load
     70Wrms power @ 8 ohm load
     distortion: 0.02% @ 1KHz/10W
     damping factor: >800
     frequency response: 3Hz to 200KHz (-3dB)
     sensitivity: 0.6Vrms
     signal to noise ratio: 115dB
     power supply: 2 x 25-30Vac / 120VA - NEED TOROIDAL TRANSFORMER (TR8040)
     PCB dimensions: 107x62mm (approx.)
     recommended heatsink (not included): HSVM100 (pre-drilled)
     recommended power transformer:
     230VAC input, 2 x 30VAC output: 12030
     115 / 230VAC input, 2 x 25VAC output: TR8040 (output power reduced by ±15%) (TR8040)
